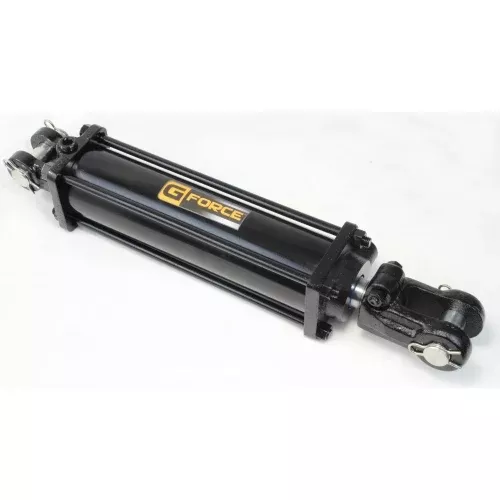

11413 2.5″ Bore, 4″ Stroke, Tie Rod Hydraulic Cylinder
- Designed for double acting applications
- Standard black color
- All seals manufactured to US specification
- 100% Hydro-pressure test
- Chrome plated rod surface treatment
|
Bore x Stroke (inch) |
Shaft Diam, (inches) |
Center to Center of Pin (Retracted, inches) |
Center to Center of Pin (Extended, inches) |
Ports (NPTF) |
Port Thread (SAE) |
Weight (lbs) |
Rated Pressure (psi) |
Max. Pressure (psi) |
| 2.5X4 | 1 1/8 | 14 1/4 | 18 1/4 | 3/8″ NPTF | 18 | 2500 | 3850 |
Dimensional Data in Inches
| A | B | C | E | G | H | I | J | M | P | Q | R | S | T | V | W |
| 10.25 | 0.189 | 3/8″ NPTF | 2.5 | 2.5 | 1.125 | 1.125 | 2.125 | 2 | 10 | 1.125″-12 UNF | 1 | 2 | 2 | 3.150 | 3.150 |
