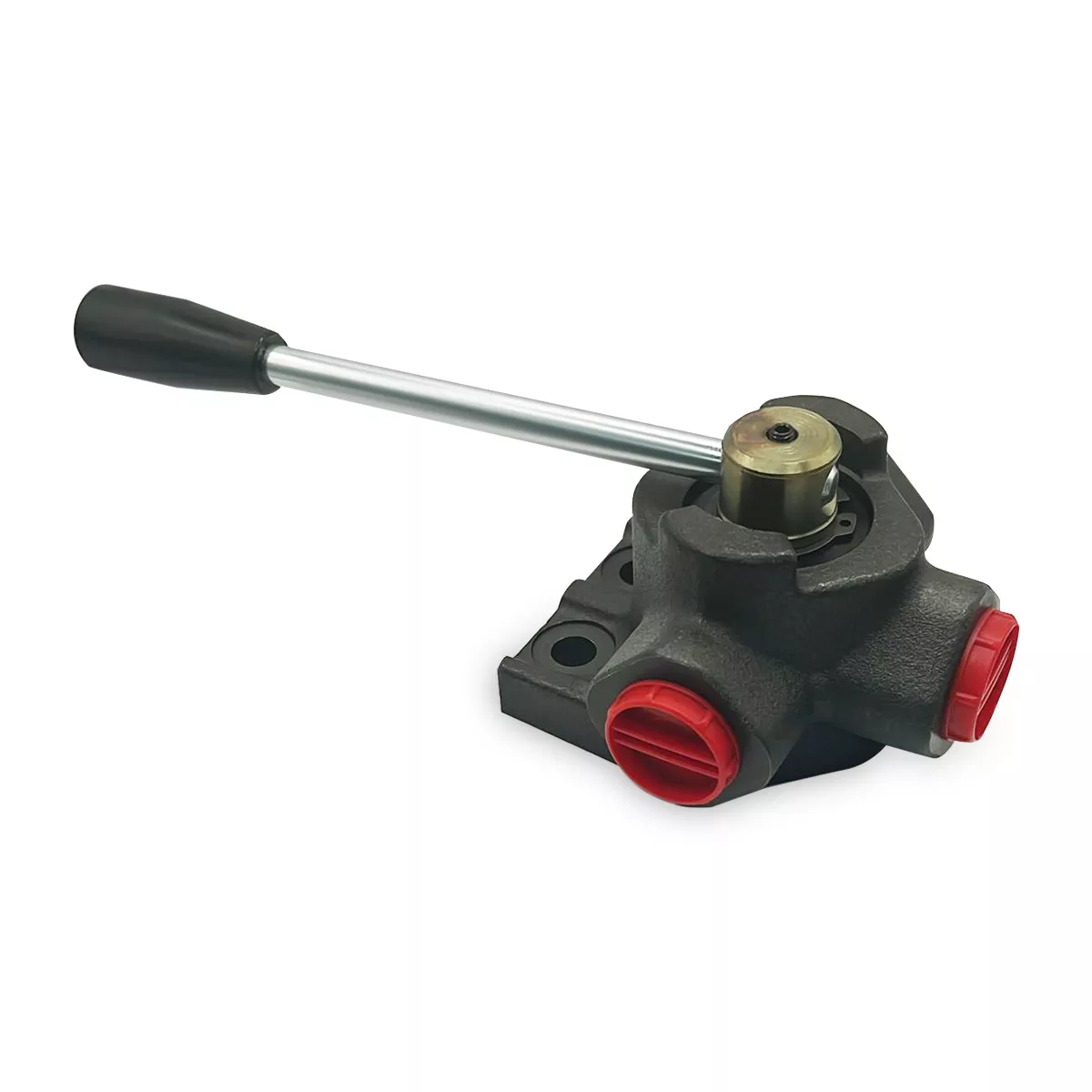

3 Way Hydraulic Rotary Diverter Valve, SAE 10. It is used to divert the flow towards two different outlets.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
CONNECTIONS:
Connect P to the supply, A and B to the ports of
the hydraulic circuit where flow has to be diverted to. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
