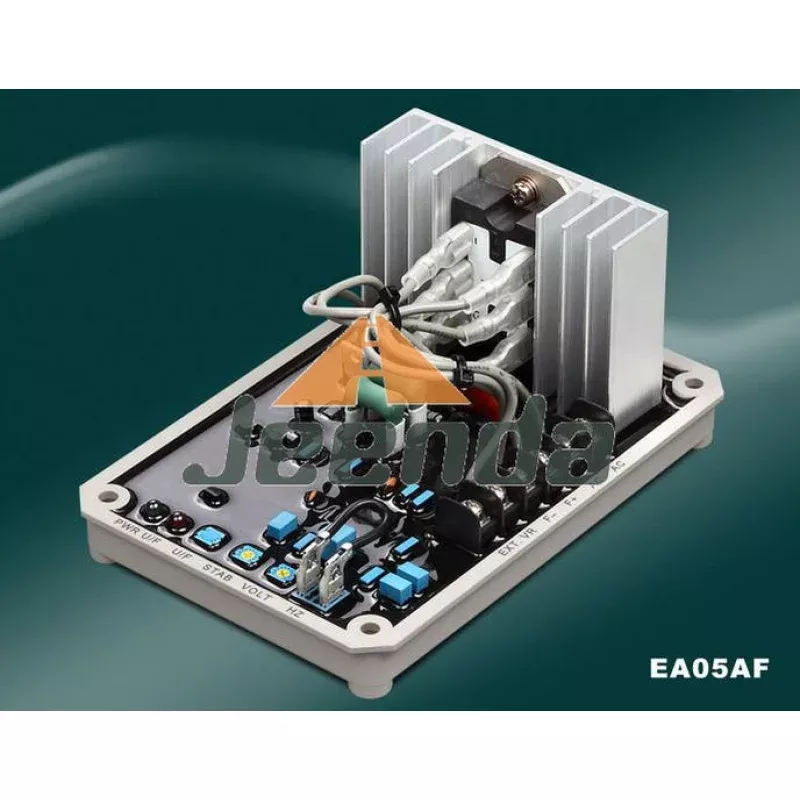

Description:
EA05AF 5 Amp Full Wave self-excited brushless type genset voltage regulator is a universal AVR and?compatible replacement for Onan VR21 series regulators
Parameter:*170 VDC*Under Frequency Protection*Soft Start Voltage Ramping*Under Frequency Protection*Built-in High Breaking Capacity Fuse
Specification:
| Sensing & Power Input | Voltage 160~260 VAC, 1 Phase 2 WireFrequency 50/60 Hz Selectable |
| Output | Voltage Max. 170 VDC @ 240 VAC inputCurrent Continuous 5A, Intermittent 7A for 10 sec.?Resistance Min. 9 , Max. 100 |
| Voltage Regulation | <1% (with 4% engine governing) |
| Voltage Build-up | More then> 5 VAC Residual voltage needed |
| External Volts Adjustment | 10% with 5 K 1 watt trimmer |
| Soft Start Ramp Time | 2 sec. |
| Unit Power Dissipation | Max. 8 Watt |
| Thermal Drift | 0. 03% per C change in AVR ambient |
| Under Frequency Protection | For 60 Hz knee point set at 55 Hz (Factory Settings)?For 50 Hz knee point set at 45 Hz (Factory Settings) |
| Environment | Vibration : 3. 3 G @ 100~2 KHzRelative Humidity : <95%Operating Temperature : -40~65 CStorage Temperature : -40~80 C |
| AVR Controls Functions | VOLTS : Voltage AdjustmentSTAB : Stability AdjustmentU/F : To Set the U/F Knee Point (U/F: Under Frequency Protection) |
| Dimensions | 150. 0(L) x 100. 0(W) x 74. 0(H) mm |
