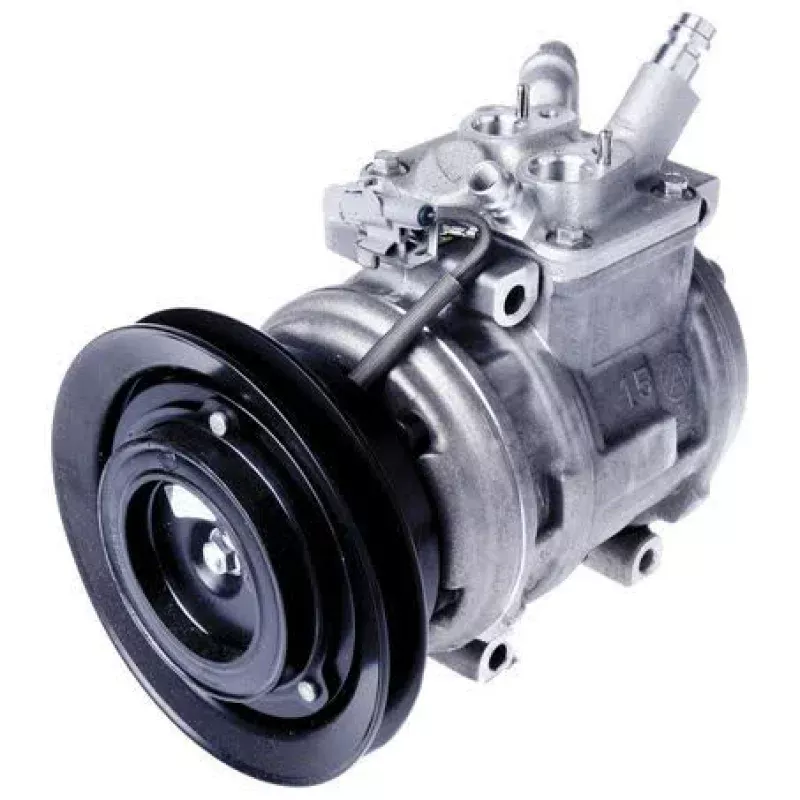

The Denso Air Conditioning Compressor 12V Direct Mount 10PA15C is a direct mount compressor supplied as a single unit, with part number CXD6255 and body number 447200-075_. It is listed with a 12 volt electrical specification, pad fitting type, A section pulley, and a 143mm clutch diameter, so the physical and drive details can be checked against the existing air conditioning setup before ordering.
This compressor is specified with an oil capacity of 100ml and a note for Pag 46 oil type. It weighs 7.3kg and carries a one year warranty. The replacement clutch is listed as 447300-117_, and the original equipment number shown is 447100-5880, which gives a useful reference point when matching the unit to an existing system.
Known applications provided include Toyota HiLux KZN165R 3.0L from 09/1999 to 01/2005, HiLux RN85/90R 2.4L from 08/1988 to 07/1997, HiLux Surf KZN185 grey import 3.0L from 11/1995 to 07/2000, HiLux LN86 to 111R 2.8L from 08/1988 to 07/1997, HiAce LH162 to 172R 3.0L from 08/2000 to 07/2004, HiLux LN147 to 1772R 3.0L from 08/1997 to 07/2005, and Mitsubishi Pajero NJ to NL 3.0L and 3.5L from 11/1993 to 04/2000.
Key Features
- Denso air conditioning compressor
- 12V direct mount design
- Series 10PA15C
- Part number CXD6255
- Body number 447200-075_
- Original equipment number 447100-5880
Specifications
- Brand: Denso
- Product type: Air conditioning compressor
- Voltage: 12V
- Compressor mounting: Direct mount
- Series: 10PA15C
- Fitting type: Pad
- Pulley section: A
- Clutch diameter: 143mm
Verified fitment applications
- Toyota HiLux KZN165R 3.0L 09/1999 – 01/2005
- Toyota HiLux RN85/90R 2.4L 08/1988 – 07/1997
- Toyota HiLux Surf KZN185 grey import 3.0L 11/1995 – 07/2000
- Toyota HiLux LN86 – 111R 2.8L 08/1988 – 07/1997
- Toyota HiAce LH162 – 172R 3.0L 08/2000 – 07/2004
- Toyota HiLux LN147 – 1772R 3.0L 08/1997 – 07/2005
- Mitsubishi Pajero NJ – NL 3.0L and 3.5L 11/1993 – 04/2000
Application and Buying Notes
Before ordering, check the compressor mounting style, because this unit is a direct mount with pad fittings and an A section pulley. Those details matter when you are comparing it with the existing compressor on the vehicle, especially where the vehicle has had previous repairs or the air conditioning system has been modified.
The listed part number is CXD6255 and the original equipment number is 447100-5880. Matching either identifier against the old compressor, the parts record, or the vehicle application is the safest way to avoid a mismatch. The body number 447200-075_ and replacement clutch 447300-117_ are also useful references when confirming what is fitted now.
Oil details also need attention. This compressor is listed with 100ml oil capacity and Pag 46 oil type, so the lubricant specification should be checked during installation. The unit weighs 7.3kg, which gives a practical idea of the size and handling involved when replacing the compressor.
The fitment list includes several Toyota HiLux variants, a Toyota HiAce application, a Toyota HiLux Surf grey import application, and Mitsubishi Pajero NJ to NL. Even where the model family matches, it is still important to confirm the engine size, build date, and existing compressor details before purchase, because those points can change the correct part choice.
Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.
For workshop, fleet, and equipment applications, accurate identification of part number CXD6255 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.
Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 143mm, Fitting Type Pad, Pulley Section A, Series 10PA15C, Voltage 12, Oil Capacity 100ml, Weight 7.3kg.
Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXD6255, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10PA15C, Body Number 447200-075_, Compressor Mounting Direct Mount, Original Equipment Number 447100-5880, Replacement Clutch 447300-117_, Suits Unit Make Denso, Note Oil Type Pag 46.
Denso Air Conditioning Compressor 12V Direct Mount 10PA15C. Part number CXD6255 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.
Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.
For part number CXD6255, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.
Compatibility note: Confirm fitment using the part number CXD6255, original equipment number 447100-5880, direct mount pad configuration, 12V specification, and the listed vehicle application details before ordering.
FAQ
What is the part number for this compressor?
The part number listed is CXD6255.
What voltage is this air conditioning compressor?
It is specified as 12V.
What vehicles are listed as compatible?
Listed applications include Toyota HiLux KZN165R 3.0L 09/1999 – 01/2005, HiLux RN85/90R 2.4L 08/1988 – 07/1997, HiLux Surf KZN185 grey import 3.0L 11/1995 – 07/2000, HiLux LN86 – 111R 2.8L 08/1988 – 07/1997, HiAce LH162 – 172R 3.0L 08/2000 – 07/2004, HiLux LN147 – 1772R 3.0L 08/1997 – 07/2005, and Mitsubishi Pajero NJ – NL 3.0L and 3.5L 11/1993 – 04/2000.
What oil type should be used?
The note lists Pag 46 oil type, with an oil capacity of 100ml.
What clutch size is listed?
The listed clutch diameter is 143mm.
Does this compressor come with a warranty?
Yes. It is listed with a one year warranty.
