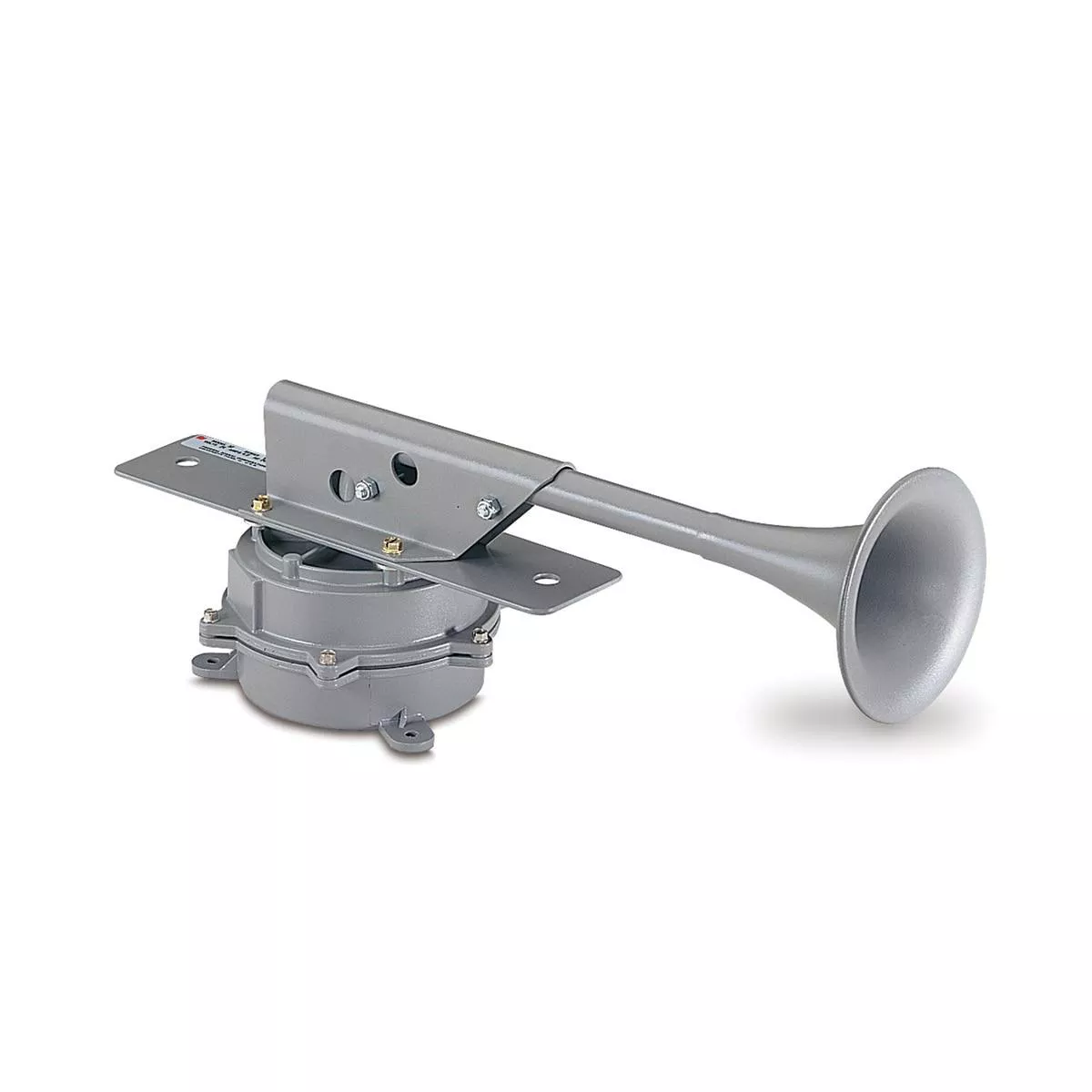

Model 52 resonating horn is ideal for penetrating high ambient noise levels. Being electrically-activated, the Model 52 does not require an expensive air compressor for operation. It is able to withstand the shocks, vibrations, dust and atmospheric conditions encountered in off-road use. Rubber gaskets and a power connector make the Model 52 completely watertight. The projector and internal parts are made to resist corrosion; the exterior is sealed with gray enamel paint and the housing is die-cast aluminum. The Model 52 has a duty cycle of five minutes on and five minutes off.Used by many major manufacturers of construction equipment, Model 52 resonating horns suit the warning needs of any off-road vehicle working in a high noise environment.
Specifications
| Brand Name | Federal Signal | Item Name | Resonating Horn |
| Type | Resonating Horn | Voltage Rating | 24 VDC |
| Amperage Rating | 4 A | Sound Level | 114 dB |
| Mounting Type | Surface | Color/Finish | Gray |
| Operating Temperature | -40 to 185 °F | Material | Die-Cast Aluminum |
| Dimensions | 6.63 in W x 21.6 in D x 8.5 in H | Standards | NEMA Type 4X |
| Application | Off-Road Vehicle | UPC | 782979227014 |
