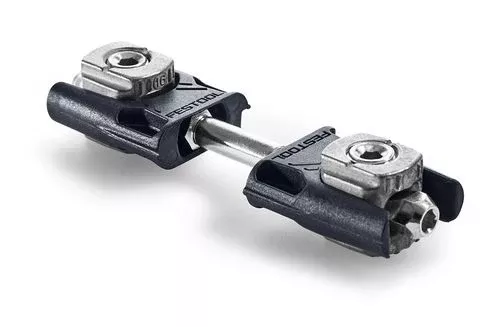

203169, Festool Center Panel Connector MSV-LR32 D8/25
The DOMINO/LR 32 MSV-LR 32 D8/25 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500; for 25 center panel joints with the DF 500 and drilling series of holes
Features:
- The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
- The connectors’ large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
- The flush-screwed fixture elements protect each furniture component from being scratched
- Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
- The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
Specifications:
- Joint fixture (8 mm DOMINO dowel cross-cuts) D8
- Panel thickness 18 – 28 mm
- DOMINO routing depth for base part 28 mm
- Drilling diameter for Euro bolt 5 mm
- Drilling diameter in base part 15 mm
