Product Description

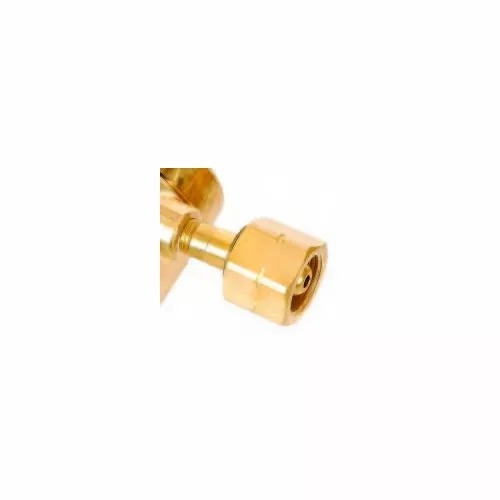

GENERAL MACHINE PRODUCTS 82211 LOW PRES AIR REGULATOR W/FEMALE FITTING STANDARD UNIT NEWWorks with your gas cylinder to control outlet pressure when you’re charging cables during pressurization.It’s a two stage regulator: the top stage has a 0-3000 psi high pressure gauge with three scales for finding gas volumes (SCF) and pressures in both 224 and 24 cu. ft. cylinders: the bottom stage features a 0-50 psi low pressure gauge for monitoring outlet pressureWeights approximately 6 lbs. and has maximum over-all dimensions of 7 x 6.5 x 6.5 inchInlet fitting is CGA 555 left hand inlet (female) P/N 82211Also available is a special version with CGA 590 right hand male inlet fitting P/N 82213Ordering InformationP/N Description Weight——————————————————————————–82211 C Pressure Regulator with CGA 555 left hand inlet (Female) 6 lb 4 oz. (2.8 kg) 82213 C Pressure Regulator with CGA 580 right hand inlet (Male) 6 lb 4 oz.(2.8 kg) 82214 Optional Regulator Hard Hat 2 lb 8 oz.(1.1 kg) 70119 Optional Female/Male Adaptor
