Product Description

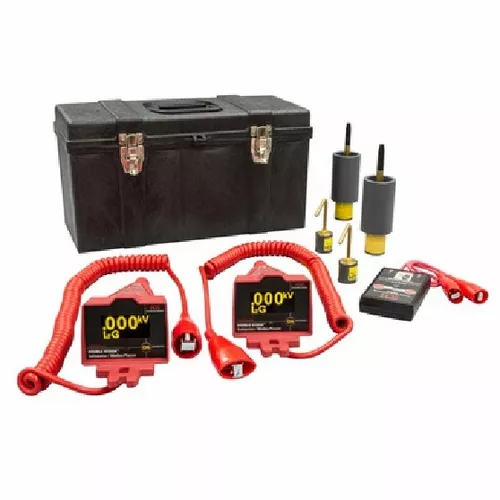

GREENLEE DDPM-40/K02DD PHASING METER, PT-5000B, ASP-15/25783310081173/52083978GREENLEE DDPM-40/K02DD PHASING METER, PT-5000B, ASP-15/25783310081173/52083978Measures voltage from 5V to 43kV line-to-lineCan be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apartClear indication of phase angleTwo LED displays are automatically synchronized during phasing operationsVersatile for overhead and underground applicationsCapacitive Test Point and Peak Hold modesSpecificationsSub BrandHDETypeVoltmeter & Phasing setModelDDPM-40Voltage Rating5V – 43kV line-to-line, 5V – 25kV line-to-groundAccuracyWithin 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements)DisplayTwo LED displays with 0.7″ numeral height. Displays 3 digitsOperating Temperature-20°F to +120°F (-29°C to +49°C)Dimensions14″ L x 4.1″ H x 4.6″ W (36 cm x 10 cm x 12 cm) without probesFrequency Rating25 – 1000Hz AC/DCPhase IndicationPhase AngleIncluded:DDPM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15/25 15kV/25kV UG Bushing Probe (2), PT-5000B Proof Tester, CS-DDVM Case
