Product Description

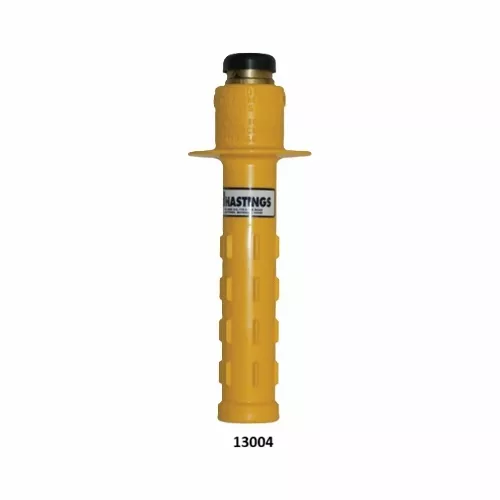

HASTINGS 13004Medium Range Jumper Clamp, YellowQty 1HASTINGS 13004Medium Range Jumper Clamp, YellowQty 1HASTINGS 13004Medium Range Jumper Clamp, YellowQty 1MECHANICAL JUMPER CLAMPS- MEDIUM RANGE JUMPER CLAMP YELLOW- Two sizes available – 6 solid through 556.5 MCM and 6 solid through 954 ACSR- Easy to install- Thrust bearing design provides low friction for tightening clamp- Bronze clamping rings have serrated contact surface to insure good electrical contact with conductors- Two styles available…—-Yellow handles are made from bright yellow, impact resistant modified polyolefin material—-Clear handles are made from a high impact plastic material- Grip tabs are molded in for easy gripping with rubber gloves- Conductor clamp is machined from brass alloy- Rated for 400 amps continuous current maximum rating – this rating is dependent on the rating of the jumper cable used with the clampsSPECIFICATIONS – MAIN LINE RANGE:556-5 MCM OR 477 ACSR- MAIN LINE RANGE:MIN -6 SOLID .162 DIA- JUMPER CABLE RANGE:MAX – 4/0 15KV*- JUMPER CABLE RANGE:MIN- 2 15KV*NOTE: CLAMPS WILL ACCOMMODATE 4/0 STR. 15KV CABLE ONLY IF EPR (ETHYLENE, PROPYLENE RUBBER) INSULATED CABLE IS USED.WEIGHT :1.6LBS
