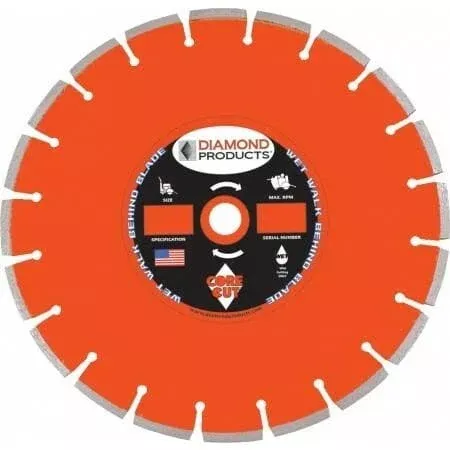

Heavy Duty Orange Cured Concrete Diamond Blades – H with taller segments, and a high diamond concentration
- .250″ Diamond Depth
Pro Heavy Duty-TH
- .310″ Diamond Depth
- Taller segment, high diamond concentration
Super Heavy Duty-SH
- .375″ Diamond Depth
- Even taller segment and higher diamond concentration
- Fast cutting blade that works well with a wide variety of high or low HP saws
- Combines long life performance while maximizing your blade dollars
| 10″ x .110 | 24″ x .140 |
| 10″ x .125 | 24″ x .155 |
| 12″ x .110 | 24″ x .165 |
| 12″ x .125 | 24″ x .175 |
| 12″ x .140 | 24″ x .187 |
| 12″ x .155 | 24″ x .210 |
| 12″ x .187 | 24″ x .250 |
| 12″ x .250 | 26″ x .155 |
| 12″ x .375 | 26″ x .165 |
| 14″ x .110 | 26″ x .175 |
| 14″ x .125 | 26″ x .187 |
| 14″ x .140 | 26″ x .250 |
| 14″ x .155 | 28″ x .187 |
| 14″ x .187 | 30″ x .175 |
| 14″ x .250 | 30″ x .187 |
| 14″ x .375 | 30″ x .210 |
| 16″ x .125 | 30″ x .250 |
| 16″ x .140 | 32″ x .175 |
| 16″ x .155 | 32″ x .187 |
| 16″ x .187 | 32″ x .210 |
| 16″ x .250 | 32″ x .250 |
| 18″ x .125 | 36″ x .175 |
| 18″ x .140 | 36″ x .187 |
| 18″ x .155 | 36″ x .210 |
| 18″ x .165 | 36″ x .250 |
| 18″ x .175 | 42″ x .187 |
| 18″ x .187 | 42″ x .210 |
| 18″ x .210 | 42″ x .220 |
| 18″ x .250 | 48″ x .210 |
| 20″ x .125 | 48″ x .250 |
| 20″ x .140 | 54″ x .220 |
| 20″ x .155 | 60″ x .220 |
| 20″ x .165 | — |
| 20″ x .187 | — |
| 20” x .250 | — |
1″ arbor with drive pin hole standard. Custom arbor sizes/types are available. When ordering, please specify arbor size/type if different from 1″.* Additional blade sizes available upon request.
NO CHARGE FOR ‘X’ SLANT SEG WEAR PROTECTION OR CUSTOM BOLT PATTERNS (Example: LOUIE or ROGER bolt pattern)
To ensure maximum performance, water is required to cool these blades during the cutting process.
