GE conduit outlet boxes have: GEC Series has water shedding cover – suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Water shedding cover – suitable for wet locations when mounted in upright position.
External cover threads on body protecting conductors from damage during pulling.
No pinching of conductors during cover installation.
Taper threaded hubs to provide ground continuity.
Smooth integral hub bushing to protect conductor insulation when pulling.
Internally threaded cover openings for additional wiring room.
Covers furnished with boxes.
Weather-resistant finish.
Green ground screw standard.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name

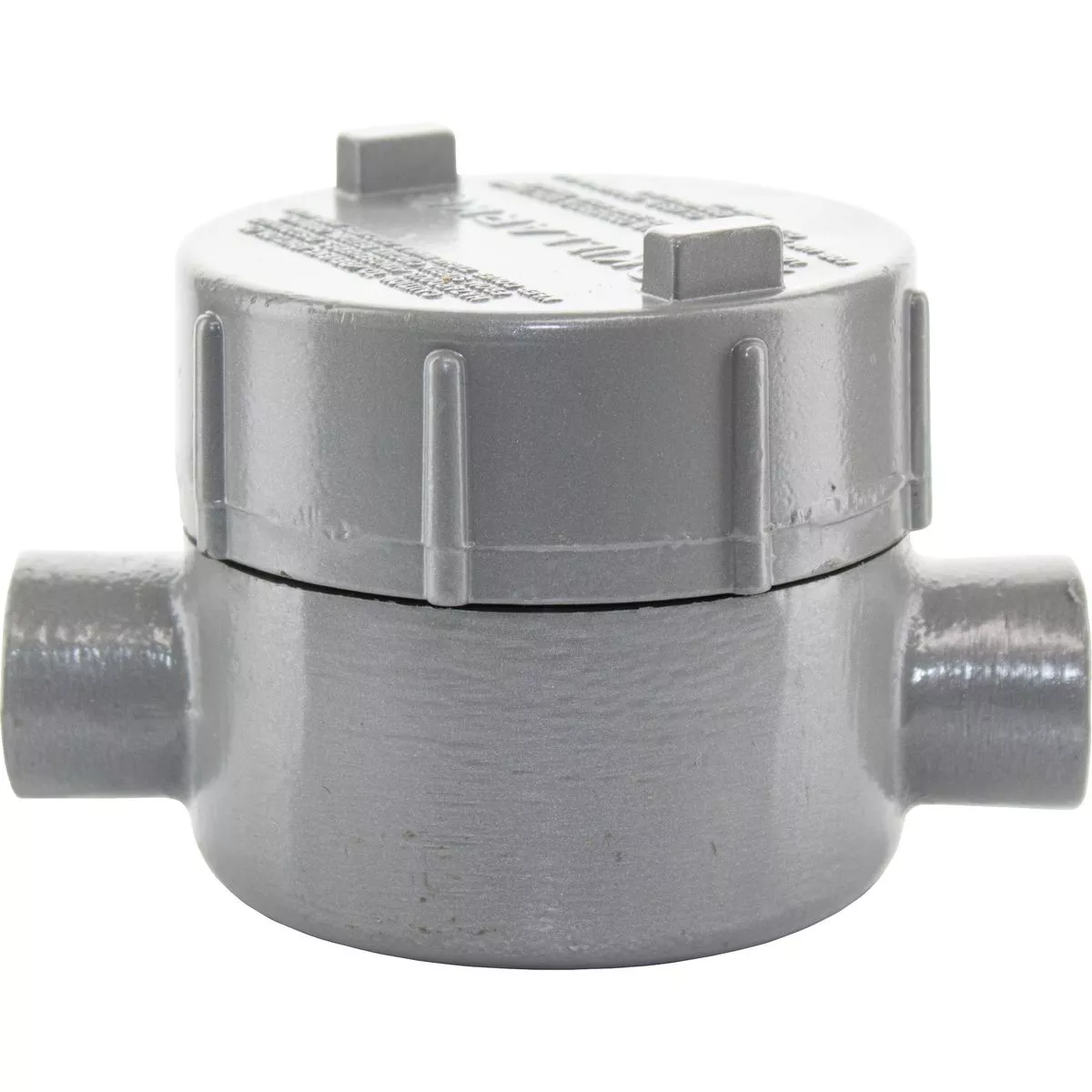

Type C Outlet Body with Cover
Type
Aluminum outlet body with cover
Hub Size
1 in
Trade Size
1 in
Cubic Capacity
19 in³
Material
Copper-Free Aluminum
Finish
Gray/Powder Epoxy Paint
Series/Model
GEC Series
Dimensions
5-15/16 in W x 3-5/8 in D x 3-11/16 in H
Standards
CSA Certified, UL Listed
Application
For Use in Hazardous Locations
UPC
783936210049
