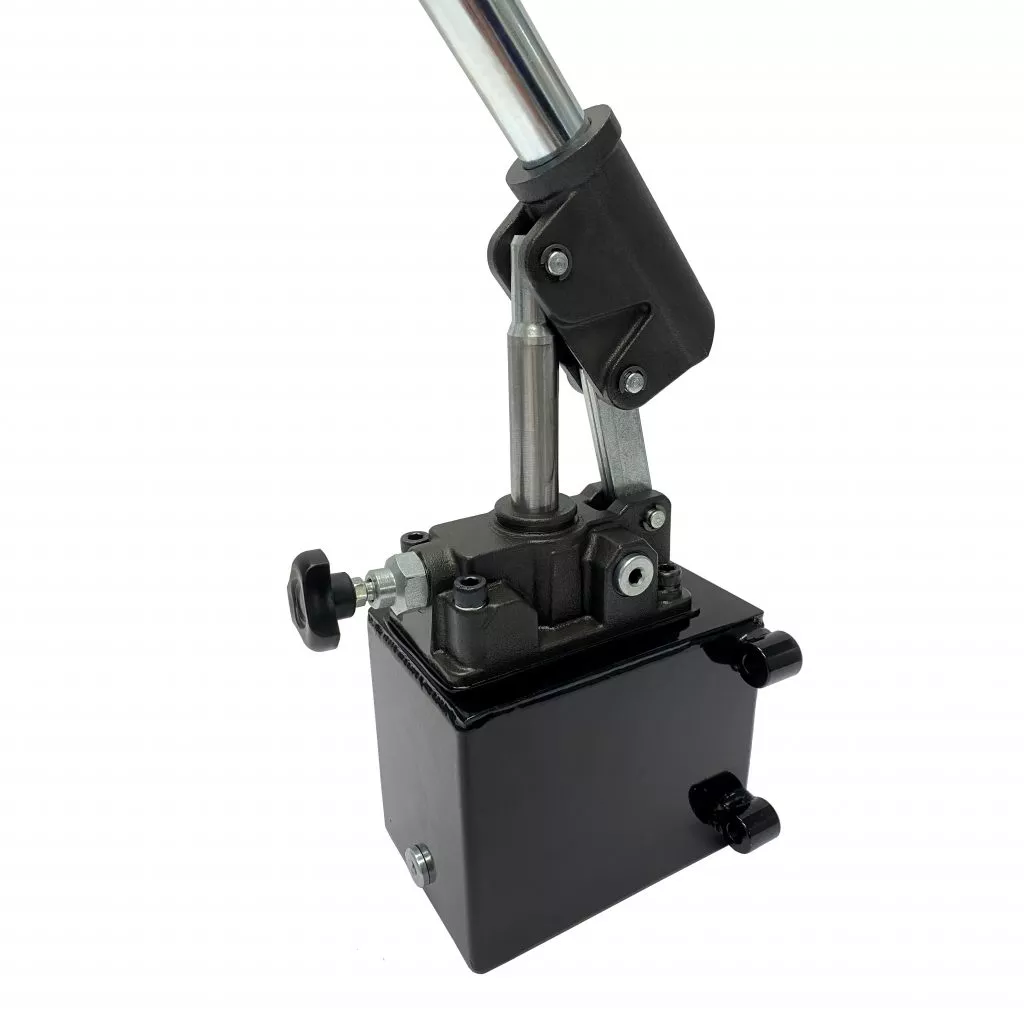

Hydraulic piston hand pump 2.7 CIDwith release knob for single acting cylinder, 1 Qrt tank

This heavy-duty hydraulic piston hand pump is designed for single-acting cylinders. Compact and portable, it delivers reliable manual hydraulic power for lifting, pressing, testing, and maintenance applications.

Double-Function Pumping (Push & Pull)

The pump generates hydraulic flow on both push and pull strokes of the handle, increasing efficiency and reducing operator fatigue.

Single-Acting Operation

Designed for single-acting cylinders, the pump supplies pressure to extend the cylinder. Retraction occurs by spring return or external load. A built-in release knob allows smooth and controlled pressure release.

Key Specifications

• Type: Piston hand pump with release knob (single-acting system)
• Displacement: 2.7 CID per cycle
• Max Pressure: 3600 PSI
• Reservoir: 1-quart vertical steel tank
• Ports: 3/8″-18 NPT
• Drain Plug: G 1/4″
• Construction: Cast iron monoblock body
• Handle: 21″ steel handle included
• Mounting: Four 0.3″ mounting holes

OPEN MANUAL

Same Day Free Shipping.Made in Europe.1-Year Warranty.

If you need assistance choosing the proper hydraulic hand pump, please contact us:973-344-5313
