IMPCO LPG PROPANE CARBURETOR MIXER 225 FB225M-F6T49

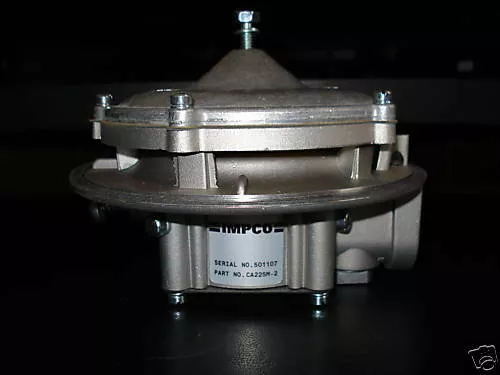

(PICTURES SHOWN OF THIS PRODUCT ARE ONLY FOR THE PURPOSE OF SHOWING THE BASIC DESIGN OF THIS UNIT)

FREE SHIPPING ON THIS PRODUCT ANYWHERE IN THE 48 STATES.

SHIPPING DISCOUNTS AVAILABLE TO ALL OTHER LOCATIONS WORLDWIDE INCLUDING HAWAII AND ALASKA…PLEASE CONTACT US FOR DETAILS.

                                  TECHINCAL DESCRIPTION

          THE MODEL 225 CARBURETOR IS A SINGLE DIAPHRAGM AIR VALVE CARBURETOR/MIXER.  IT OFFERS A DOWN-DRAFT AIR INLET THAT CAN BE USED FOR REMOTE AIR FILTRATION OR OPEN-ELEMENT TYPE AIR FILTERS.  THIS UNIT IS AVAILABLE FOR PROPANE, NATURAL GAS AND DIGESTER GAS APPLICATIONS.  IT HAS BEEN SUCCESSFULLY USED FOR OTHER HYDROCARBON BASED VAPOR FUELS AS LOW AS 500 BTU.

       THE MODEL 225 IS ALSO AVAILABLE FOR FEEDBACK APPLICATIONS WIHT THE ‘FB’ DESIGNATION.  THESE FB MIXERS ARE AVAILABLE IN TAMPER RESISTANT CONFIGURATION, INDICATED BY THE PART NUMBER SUFFIX “-TR” ON THE PART NUMBER.

       TWO SEPARATE AIR VALVE VACUUM SUPPLIES ARE AVAILABLE WITH THIS MIXER.  ADDITIONAL LOW SPEED MIXTURE CONTROL CAN BE OBTAINED TO LEAN AIR-FUEL MIXTURES WIHT OPTIONAL SHIMS.  CHECK THE ACCESSORIES SECTION FOR MORE INFORMATION.  ALL 225 DG SERIES MIXERS REDUCE AIRFLOW BY 30%

                              TECHNICAL SPECIFICATIONS

FUEL TYPE…………………………………….METHANE/PROPANE (550-2500 BTU)

MAXIMUM FUEL INLET…………………PRESSURE 8.0 IN H20

MAXIMUM BOOST PRESSURE……….5.0 psi

AIR FLOW CAPACITY……………………..80 cfm @ 2.0 IN Hg MANIFOLD (DERATE 15% FOR METHANE, 30% FOR DIGESTER GAS)

HORSEPOWER RATING…………………………………237 hp @ 2,500 BTU PER CUBIC FEET

OPERATING TEMPERATURE…………….-40 DEGREE C TO 120 DEGREE C (-40 DEGREE F TO 250 DEGREE F)

MATERIALS:

BODY…………………………………………………ALUMINUM

DIAPHRAGM………………………………………HYDRIN (STANDARD), SILICONE (OPTIONAL)

PLEASE SEE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

• ITEM IS A  225 MIXER ASSEMBLY, MODEL 225 TAMPER REST.
• THROTTLE BODY:  N/A
• SAE FLANGE:  N/A
• [A]   CENTER TO  CENTER BOLT SPACING: N/A
• [B]    BORE:   N/A
• [C]    MIXER AIR HORN DIA.:   N/A
• [D]    OVERALL WIDTH:  N/A
• [E]     NPT INLET:    N/A
• [F]     OVERALL HEIGHT:  N/A
• [G]     THROTTLE BODY HEIGHT:  N/A
• [H]     THROTTLE SHAFT DIA.:  N/A
•  [I]      FLANGE TO CENTER OF AIR HORN:  N/A
