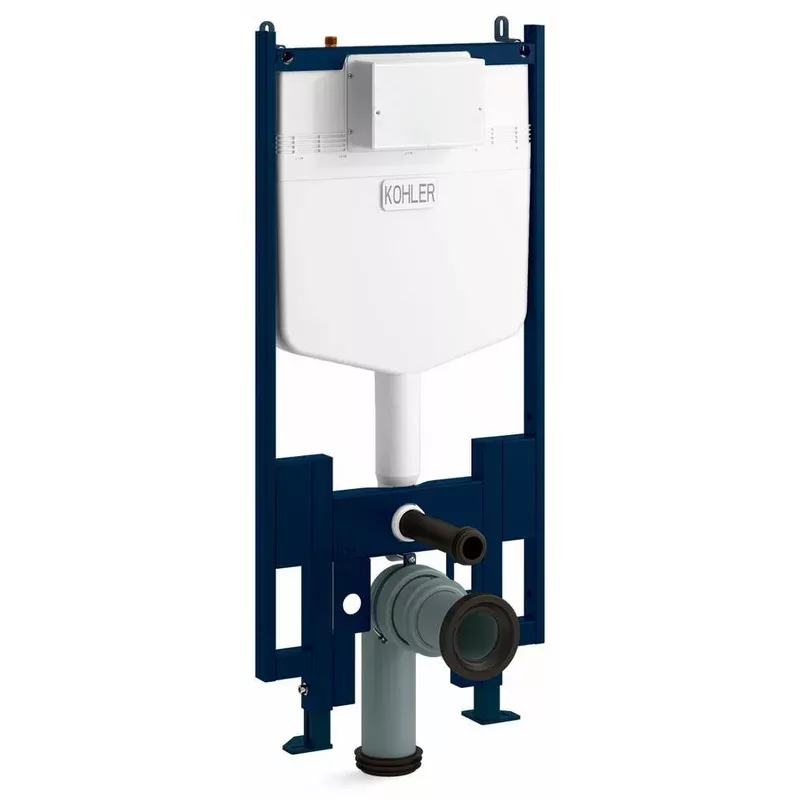

With its insulated tank, durable steel frame, large flush actuator opening, and adjustable height, this in-wall tank and carrier system provides unparalleled installation flexibility. The dual-flush actuator offers a choice of 0.8 or 1.6 gpf, and this in-wall tank combines with compatible wall-hung toilet bowls and select flush actuator plates to create a complete toilet solution. With KOHLER, its easy to find the design solution thats right for you.
- When installed per Kohler installation instructions, the KOHLER in-wall tank and carrier system can support up to 880 lb (400 kg) without damage
- Requires 1201721 electrical box kit when pairing bidet seat with bowl
- Durable steel frame carrier is installed on either 2″ x 4″ or 2″ x 6″ studs behind the wall. See installation guide and installation video for more detailed information
- Supply line sold separately
- Robust steel frame
- Insulated tank to prevent sweating
- Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
- Large flush actuator plate opening can be removed for easy access to inner tank
- Adjustable height allows bowl to be set from drainage outlet centerline to frame bottom 6-7/16″19-13/16″ (164503 mm) from floor
- Works with compatible wall-hung bowls and select flush actuator plates to create a complete solution
- Eligible for consumer rebates in some municipalities
