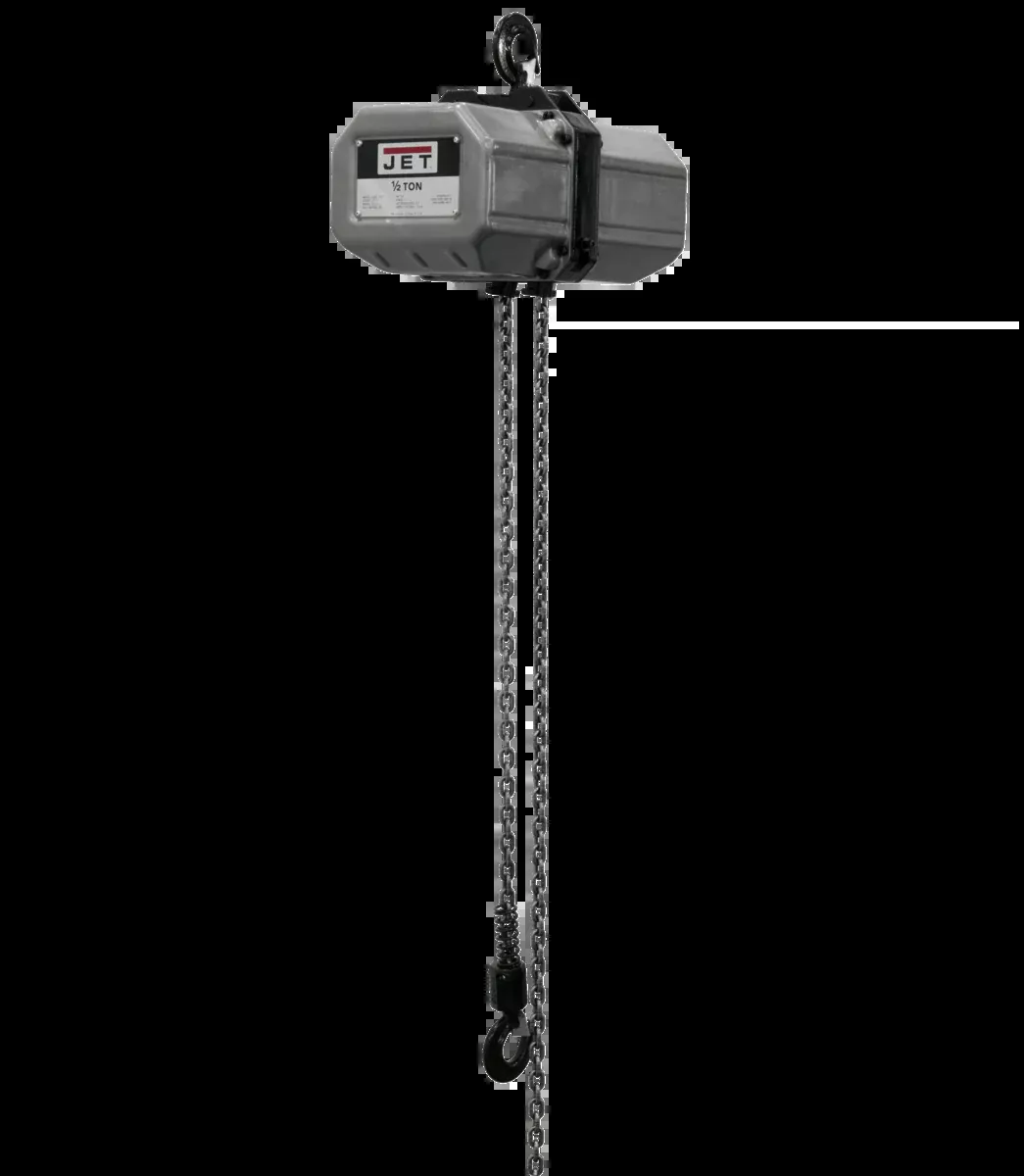

Jet 1/2SS-3C-40, 1/2 Ton, 3Ph, 40 ft. Lift, 230/460V, Prewired 460V 123400

123400, JET 1/2SS-3C-40 1/2-Ton Electric Chain Hoist w/ 40′ LIFT 3PH

JET® SSC Series Electric Hoists combine safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three-phase configurations to suit your electrical needs. Single-phase models have a thermal overload protection design that keeps the hoist from overheating, while the three-phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry-proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET® SSC Series Electric Hoist is available in 1/2-Ton to 5-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available). Not rated or designed for outdoor use or wet environments.

Features:

• All steel construction

• NEMA 4X compliant push button control pendants

• Durable powder coat finish

• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability

• Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling

• Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity

• Push button controller with cable strain relief system for durability and reliability

• Reverse Phase Relay- A safety switch that protects the hoist from incorrect wiring of the power supply

Specifications:

• Stock Number: 123300

• Capacity (Lbs.): 1000

• Duty Cycle (%): 30

• Duty Cycle Rating: H4

• Lift (Ft.): 30

• Lifting Speed (FPM): 31

• Load Capacity (Tons): 1/2

• Max. Number of Starts (Per Hr.): 180

• Max. On-Time (Min. / Hr.): 18

• Motor (HP): 1-1/3 HP, 460V, 3 Ph

• Motor Phase: 3

• Overload Protection: Yes

• Prop 65: Cancer and Reproductive Harm

• Weight (Lbs.): 113

• Headroom (In.): 20-3/16

• Overall Width (In.): 8.61

• Motor Current (Amps): 8
