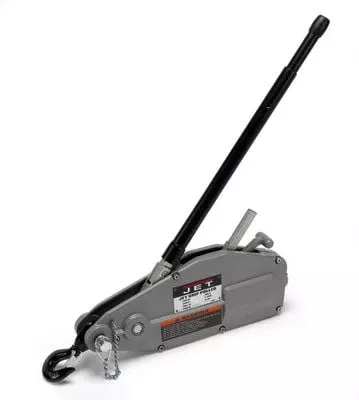

286515, Jet JG-150, 1-1/2 Ton Grip Puller Without Cable
JET® JG Series Grip Pullers incorporate proven industrial designs that lift, lower, stretch or pull heavy loads.Available in multiple configurations, JET Grip Pullers are manufactured with lightweight zinc-plated steel to resist corrosion and a multiple clutch brake system increasing safety on the jobsite.JET JG Series Grip Pullers comply with ANSI/ASME B30.21 standards.
Features:
- Designed to lift, lower, stretch or pull heavy loads
- Available in 3/4, 1-1/2 and 3-Ton pulling capacities
- Lightweight zinc coated steel is used to resist corrosion
- A double sealed ratchet brake system increases safety on the jobsite
- Complies with ANSI/ASME B30.21 standards
Specifications:
| Load Capacity (Tons) | 1-1/2 |
| Winching /Pulling Capacity (Lbs.) | 3,000 |
| Lifting Capacity (Lbs.) | 3,000 |
| Lifting Speed (FPM) | 10 |
| Distance Per Stroke (In.) | 2-1/6 |
| Handle Length (Min./Max.) (In.) | 31-1/2 – 47-1/4 |
| Overall Dimensions (L x W x H) (In.) | 21-1/2 x 3-7/8 x 11 |
| Weight (Lbs.) | 48 |
| Height | 12.5000 |
| Length | 21.0000 |
| Weight | 47.2000 |
| Width | 5.5000 |
