Product Description

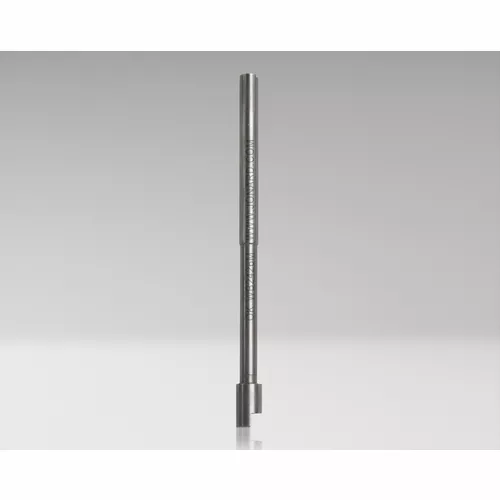

JONARD WB2426M 24-26AWG Modified BitFully compatible with any make or model of wire wrapping tools, this 3″ modified wire wrapping bit is perfect for wrapping 24-26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025″ (0.63 mm) square terminals with 0.100″ (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part : P2224 and P2224INSSpecificationsSleeve Part No.P2224 and P2224INS (sold separately)Wrap FunctionWrapWrap TypeModifiedWire Gauge24-26 AWG (0.50 mm-0.40 mm)Maximum Insulation Diameter0.046″ (1.17 mm)Minimum Terminal Diagonal0.054″ (1.37 mm)Maximum Terminal Diagonal0.073″ (1.85 mm)Terminal Hole Diameter0.075″ (1.9 mm)Terminal Hole Depth0.75″ (19.05 mm)Effective Radius0.118″ (2.99 mm)Wrap Post Size0.045″ (1.14 mm)Length3″ (76.2 mm)Weight0.057 lb (25.85 g)UPC No.811490013216
