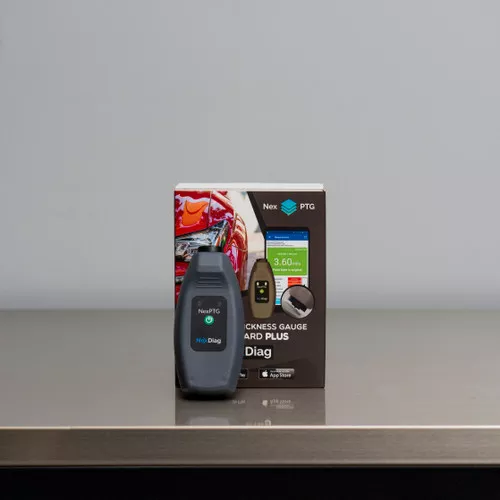

NexDiag NexPTG Standard Plus Paint Coating Thickness Depth Gauge | The Clean Garage
The basic version of the NexPTG lacquer thickness gauge. The meter has a movable spherical probe, which facilitates measurements also on the concave and convex parts of vehicles.
NexPTG has a dedicated application. You can install it on any mobile device equipped with iOS or Android. The dedicated application will allow you to examine the lacquer coat with unprecedented accuracy and precision.
iOS or Android device required
Testing on the substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum [Al]Recognized substrate types: [Fe] / [Fe+Zn] / [Al]Range of measurement: 0 – 1000 μm (0 – 39.37 mils)Resolution of measurement: 10 μm (0.4 mils)Type of probe/End of probe: movable/sphericalPossible measurement on curvatures (profiled probe housing)Measurement memory: up to 300 items Wireless transmission: Bluetooth 4.0 LETime of continuous work on alkaline batteries: up to 100 hoursAmbient temperature: -20 ° C to +40 ° CSAPL Basic: lacquer coating analysis systemTesting relative to reference pointMeasurement statisticsSupported systems: iOS / Android
