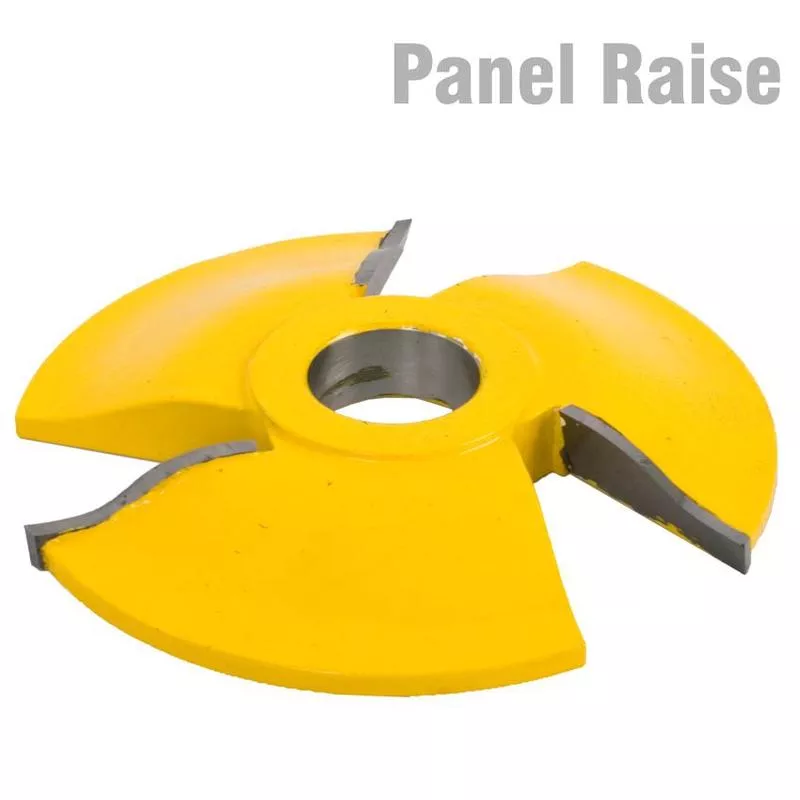

Spindle cutter – Raised panel
Tungsten Carbide – 3 wing
The cutter is designed to be used with a stationary spindle moulder equipped with either a 1 1/4′ or 30mm diameter spindle shaft.
The cutter is used to create a raised panel in the door manufacturing process. Used in conjunction with the rail & stile cutters. For example: Kitchen cabinet doors.
The cutter includes a 1 1/4′ – 30mm spacer bush.
Important:
- Make sure the spindle moulder has a table opening of at least140mm.
- Designed for spindle moulders equipped with either a 1 1/4′ or 30mm diameter spindle shaft.
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
| Wear Gloves | Eye Protection | Hearing Protection | Dust Mask |
To use spindle cutters safely (and to get the best results from your spindle), the cutters need to be installed properly on the spindle shaft. Improper installation of your cutter can cause excessive chatter and could increase the likelihood that the bits will break when in use. There is also a risk of having the cutter ‘cold welded’ to the spindle shaft.
First of all, before beginning any moulding operation, check your cutter to make sure that it is clean and most of all, sharp. If the bit is dull, chipped, is excessively burnt or has any other defect, it should be sharpened or replaced before use.
| Description | Specification |
| Cutter profile | Raised panel |
| Outside diameter | 5 1/2′ |
| Arbor | 1 1/4′ |
| Width of cut | 1 1/2′ |
| Wings | 3 |
