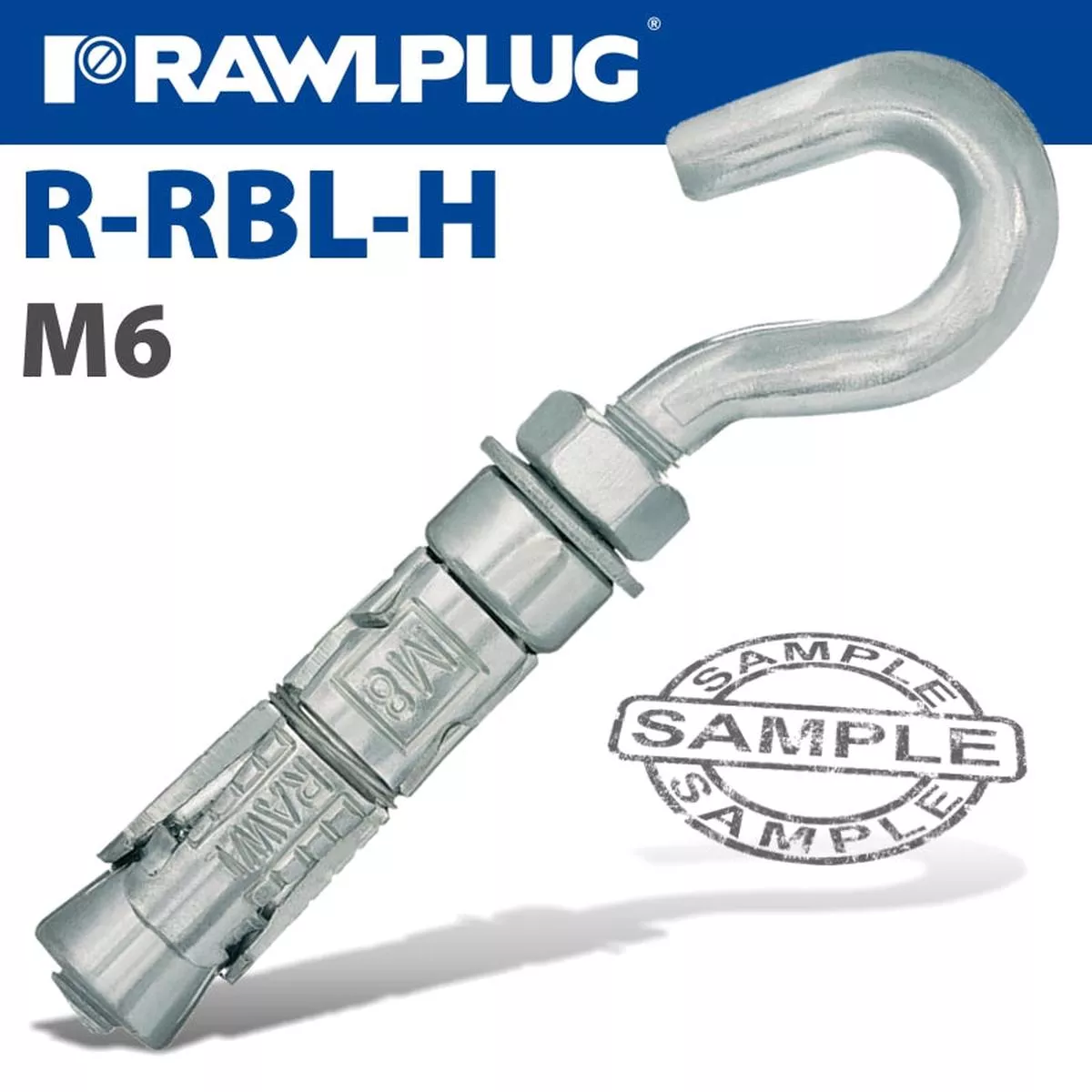

R-RBL-H Rawlbolt – hook bolt
R-RBL-06HW:
Thread: M6
Qty: 25 |Box
World’s most popular all-purpose expanding shield anchor – hook bolt version
- Hook designed & manufactured for maximum performance
- Product recommended for applications requiring fire resistance
- Three-pieces expanding sleeve of maximum expansion provides optimal load and safety of use in any substrate
- Hook Rawlbolts are not suitable for all arrest systems nor shock loading
Features:
- Hook designed & manufactured for maximum performance
- Product recommended for applications requiring fire resistance
- Three-pieces expanding sleeve of maximum expansion provides optimal load and safety of use in any substrate
- Hook Rawlbolts are not suitable for all arrest systems nor shock loading
Applications
- Supporting guy ropes, stays and cables
- Supporting ladder restraints
Base materials Suitable for use in
- Concrete
- Natural Stone
- Hollow-core Slab
- Hollow Brick
| Size | M6 | M8 | M10 | M12 | ||
| Thread diameter | d | [mm] | 6 | 8 | 10 | 12 |
| Hole diameter in substrate | d0 | [mm] | 12 | 14 | 16 | 20 |
| Wrench size | Sw | [mm] | 10 | 13 | 17 | 19 |
| SOLID SUBSTRATES | ||||||
| Installation torque | Tinst | [Nm] | 6.5 | 15 | 27 | 50 |
| Min. hole depth in substrate | h0 | [mm] | 50 | 55 | 65 | 85 |
| Installation depth | hnom | [mm] | 45 | 50 | 60 | 80 |
| Min. substrate thickness | hmin | [mm] | 100 | 100 | 100 | 100 |
| Min. spacing | smin | [mm] | 50 | 50 | 50 | 60 |
| Min. edge distance | cmin | [mm] | 53 | 60 | 75 | 90 |
| CERAMIC AND HOLLOW SUBSTRATES | ||||||
| Installation torque | Tinst | [Nm] | 3 | 5 | 8 | 10 |
| Min. hole depth in substrate | h0 | [mm] | – | – | – | – |
| Installation depth | hnom | [mm] | 45 | 50 | 60 | 80 |
| Min. substrate thickness | hmin | [mm] | 23 | 23 | 35 | 40 |
| Min. spacing | smin | [mm] | 100 | 100 | 100 | 100 |
| Min. edge distance | cmin | [mm] | 100 | 100 | 100 | 100 |
