Product Description

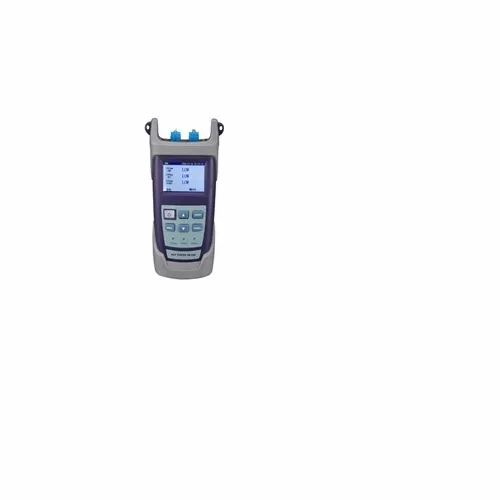

RUIYAN RY-P100-PON OPTICAL POWER METER ST-FC CONNECTOR NEWPON optical power meter is a tester designed for design, operation and maintenance of FTTX network.It is able to concurrently measure the optical power values of voice, data and video signals.It is an ideal choice for the construction and maintenance of FTTX network works.Calibrating wave length1310 upstream measurement1490 downstream measurement1550 downstream measurementSpectral passband (nm)1260乣13601470乣15051535乣1570Measurement range (dBm)-40乣+10-40乣+10-40乣+20Isolation 1310nm (dB)->40>40Isolation 1490nm (dB)>40->30Isolation 1550nm (dB)>40>40-Measurement accuracyConnatural uncertainty (dB)+/- 0.5PDL (dB)<+/- 0.25Linearity (dB)+/- 0.1Pass through insertion loss (dB)<1.5
