Simplex

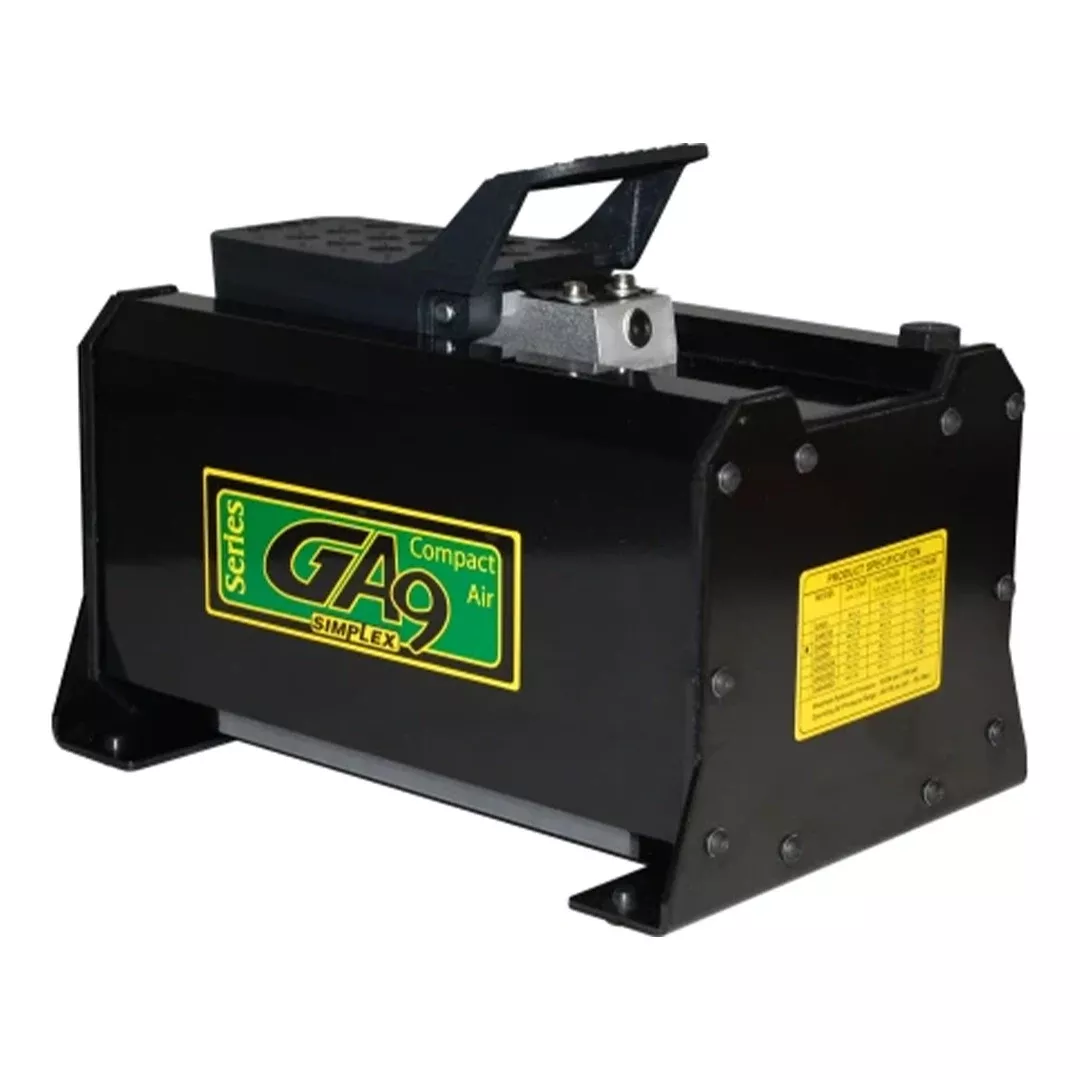

Air Over Hydraulic Compact Foot Pump, 460 in3 GA9460
FEATURES:
- An intermittent portable foot controlled pump best suited for pressing, production and shop tool applications. Runs effectively on 10 CFM (10 pi3) / @ 60 – 150 PSI (4,13 – 10,34 bar)
- 3 position non-slip, diamond grip treadle for safe advance, hold & retract operation.
- Quiet operation – 85 dba @ 10,000 psi (700 bar) for in-house production.
- Rugged all metal construction.
- High quality rubber gasket seals.
- Integrated non-spill vent / oil level indicator.
- Pedal can be used to reduce operator strain by locking in the release position.
- Four mountable non-skid rubber feet can be used to make your pump stationary.
- A non-slip diamond plate texture gives the user safe and controlled foot pivoting action.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Cylinder Compatability | Single-Acting |
| Usable Oil Capacity (in3) | 460 |
| Output Flow Rate (in3/min) at 0 psi | 68 |
| Output Flow Rate (in3/min) 10000 psi | 11 |
| Valve Operation | Manual |
| Power Source | Air |
| Pump Control | Foot Pedal |
| Air Pressure Range (psi) | 60 – 150 |
| Sound Level (dBa) | 85 |
