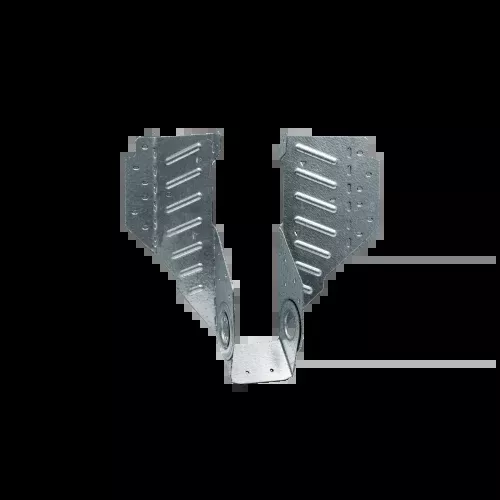

The Simpson Strong-Tie LSSR light slopeable/skewable rafter hanger is the next generation of a field-adjustable rafter hangers. One of its key features is that it can be installed after the rafter has been tacked into place. A versatile hanger, it is field adjustable for skews up to 45° and features an innovative hinged swivel seat which adjusts up to a 45° slope.
- Model No. LSSR2.37Z
- Joist Size (in.) 2-5/16
- Ga. 18
- W (in.) 2-3/8
- H (in.) 8-15/16
- A (in.) 4-1/8
- Coating/Material. ZMAX
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: LSSR_Slopeable_Skewable_Rafter_Hanger.pdf
