Special or made-to-order product — Lead times may vary based on manufacturing. Please note it is non-returnable. Contact us with any questions!
Questions? Contact us
Financing available
Satisfied or refunded
Secure payments
Mail itPrint itTechnical Specifications
Product Features
- Alternate heights and widths available by special order
- Can be skewed or sloped to a maximum of 45°
- HUTF-series hangers are tested, load rated and code listed
Product Description

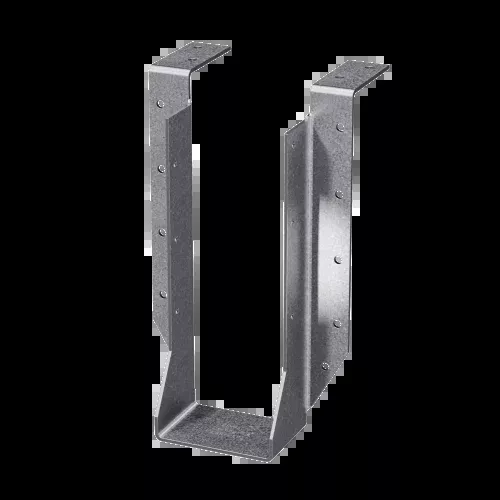

The HUTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty, top-flange joist hanger features face-nailing that allows the hanger to be securely attached to the member. The HUTF is available with one “A” flange concealed.
- Model No. HU314TF
- Joist Size. 3×14
- Ga. 12
- W (in.) 2.5625
- H (in.) 13
- B (in.) 2.5
- TF (in.) 2.5
- Coating/Material. Zinc Galvanized, G90
- Contact us for Configurable Options and Special orders
THIS ITEM IS MADE TO ORDER AND NON RETURNABLE
Note: Product dimensions and/or Fasteners holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HUTF_HUSTF_Heavy_Top-Flange_Joist_Hangers.pdf
