Mail itPrint itTechnical Specifications
Product Features
- The hanger can be sloped a maximum of 45°, with no skew options available
- HUCTF-series hangers are tested, load rated and code compliant
- Rough beam sizes are available by special order
Product Description

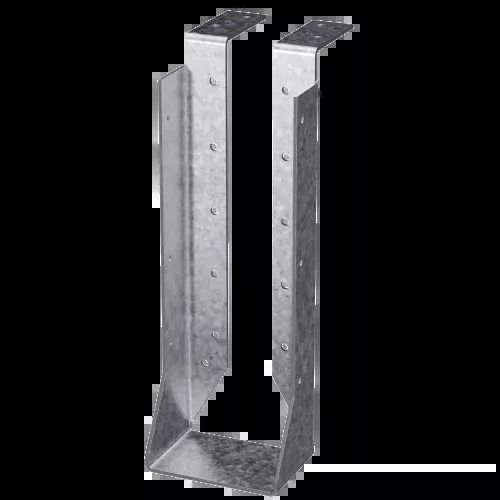

The HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.
- Model No. HUC416TF
- Joist Size. 4×16
- Ga. 12
- W (in.) 3 9/16
- H (in.) 15
- B (in.) 2 1/2
- TF (in.) 2 1/2
- Coating/Material. Zinc Galvanized, G90
- Contact us for Configurable Options and Special orders
THIS ITEM IS MADE TO ORDER AND NON RETURNABLE
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HUTF_HUSTF_Heavy_Top-Flange_Joist_Hangers.pdf
