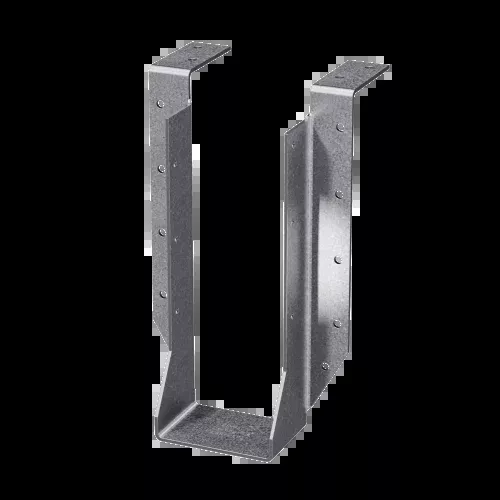

The HUTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty, top-flange joist hanger features face-nailing that allows the hanger to be securely attached to the member. The HUTF is available with one “A” flange concealed.
- Model No. HU48TF
- Joist Size. 4×8
- Ga. 12
- W (in.) 3.5625
- H (in.) 7 1/8
- B (in.) 2.5
- TF (in.) 2.5
- Coating/Material. Zinc Galvanized, G90
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or Fasteners holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HUTF_HUSTF_Heavy_Top-Flange_Joist_Hangers.pdf
