Product Description

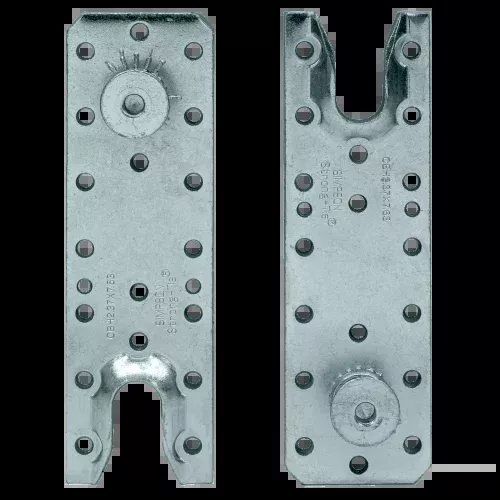

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The CBH concealed beam hanger is specifically designed for such applications, and is installed with readily available Simpson Strong-Tie SDS Heavy-Duty Connector screws.
- Model No. CBH2.37X5.5H-KT
- Ga. 3
- 2.375
- H (in.) 5-1/2
- Coating/Material. Hot-Dip Galvanized
- Applications. Joist to beam or joist to column
- Product Includes. (2) backplates (screws not included)
- Product Guide, table and Installation: View Spec Sheet
Key Features
- Concealed for architectural aesthetics and fire-rated performance
- Multiple router options to suit jobsite needs
- +/- 1/32″ beam length tolerance on each end enables easier installation
- 1-hr and 2-hr fire resistance ratings per ASTM E119 (see L-C-CBHCHAR)
- Inter-story drift performance tested to over 2% (see L-C-CBHDRIFT)
- Code-listed per ICC-ESR-2552
This is a Special order item with varied lead times and non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions may differ from picture. Please see above item description for specifications.Download Specs Sheet: CBH-ACBH_Concealed_Beam_Hangers.pdf
