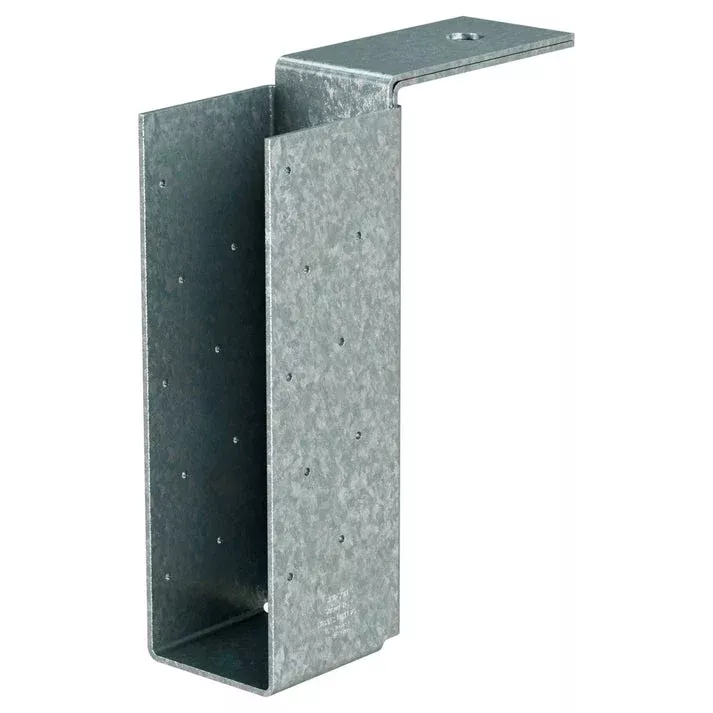

The MBHA Concrete and Masonry Top-Flange Hanger is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galvanized finish for corrosion protection and can be skewed up to 45 degrees to suit a wide variety of application.
- Model No. MBHA3.56/18
- CL. 1 3/4
- W (in.) 3 9/16
- H (in.) 18
- Material. 10 gauge
- Finish. Galvanized
Options
- Seat can be skewed at 45° only.
- Contact us for Configurable Options and Special orders
- The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4″. For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
Note: Product dimensions may differ from picture. Please see item description for specifications.
Download Specs Sheet: MBHA_Concrete-Masonry_Top-Flange_Hanger.pdf
