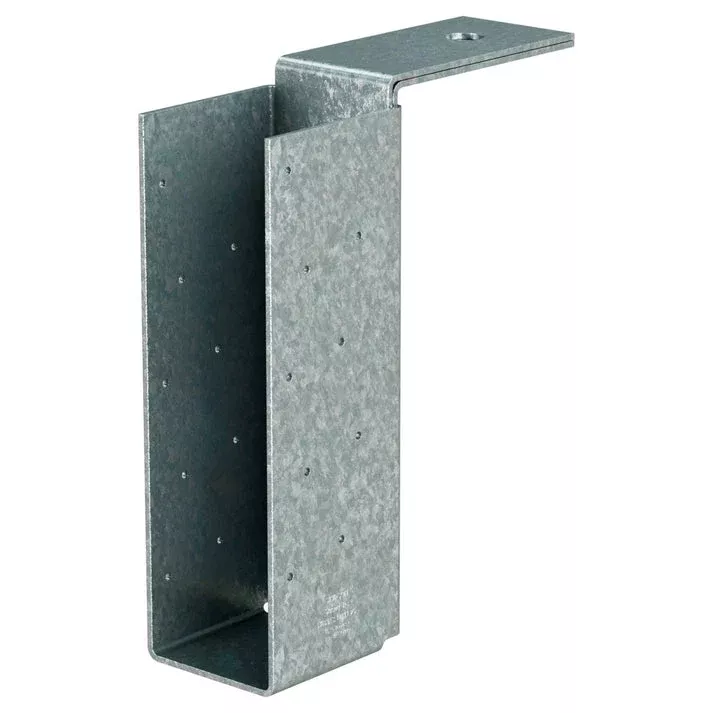

Simpson MBHAL5.50/16 Masonry Hanger Skewed Left 5-1/2 x 16

The MBHA Concrete and Masonry Top-Flange Hanger is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galvanized finish for corrosion protection and can be skewed up to 45 degrees to suit a wide variety of application.

• Model No. MBHAL5.50/16
• Description. Masonry Hanger- Skewed 45 Degrees Left
• W (in.) 5 1/2
• H (in.) 16
• Material. 10 gauge
• Finish. Galvanized

Options

• Seat can be skewed at 45° only.
• Contact us for Configurable Options and Special orders
• The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4″. For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.

Note: Product dimensions may differ from picture. Please see item description for specifications.

Download Specs Sheet: MBHA_Concrete-Masonry_Top-Flange_Hanger.pdf
