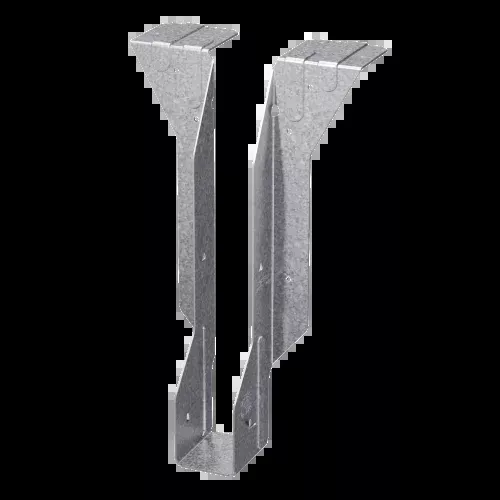

The MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.
- Model No. MIT318
- Joist Size (in.) 2-1/2 x 18
- Ga. 16
- W (in.) 2-4/7
- H (in.) 18
- B (in.) 2-1/2
- TF (in.) 2-5/16
- Coating/Material. Zinc Galvanized, G90
- Contact us for Configurable Options and Special orders
Installation. Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
Note: Product dimensions may differ from picture. Please see above item description for specifications.
Download Specs Sheet: ITS-MIT-HIT_Engineered_Wood_Product_Top-Flange_Hangers.pdf
