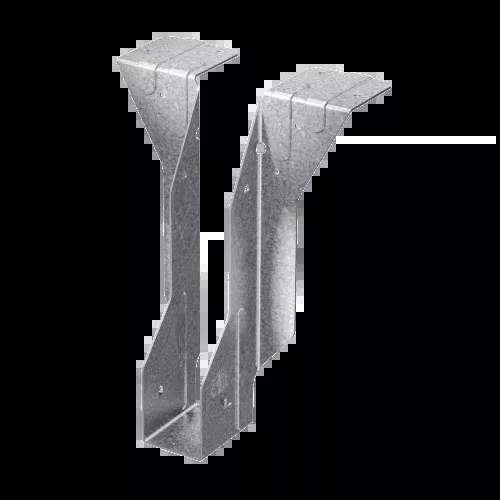

Simpson MIT9.5 Top-Flange Joist Hanger for 1-3/4×9-1/2

The MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.

• Model No. MIT9.5
• Joist Size (in.) 1-3/4 x 9-1/2
• Ga. 16
• W (in.) 1-13/16
• H (in.) 9-1/2
• B (in.) 2-1/2
• TF (in.) 2-5/16
• Coating/Material. Zinc Galvanized, G90
• Contact us for Configurable Options and Special orders

Installation. Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist

Note: Product dimensions may differ from picture. Please see above item description for specifications.

Download Specs Sheet: ITS-MIT-HIT_Engineered_Wood_Product_Top-Flange_Hangers.pdf
