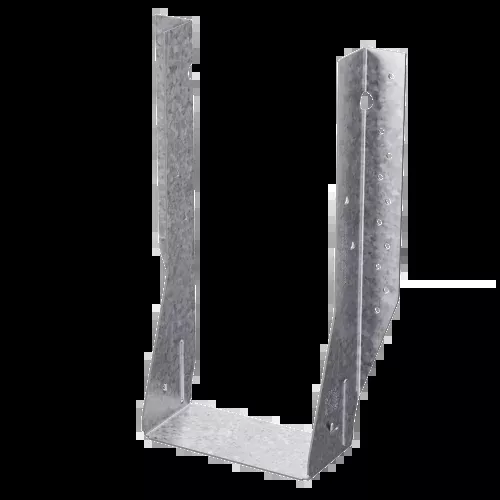

Simpson MIU1.56/9 Face-Mount I-Joist Hanger 1-1/2×9-1/2

Special or made-to-order product — Lead times may vary based on manufacturing. Please note it is non-returnable. Contact us with any questions!

Questions? Contact us

Financing available

Satisfied or refunded

Secure payments

Mail itPrint itTechnical Specifications

Product Features

• Extra optional triangle holes for additional load
• Models will normally accommodate a skew of up to 5°
• MIU-series hangers are tested, load rated and code complian

Product Description

The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.

• Model No. MIU1.56/9
• Joist Size 1-1/2 in. X 9-1/2 in.
• Ga. 16
• W (in.) 1-9/16
• H (in.) 8-15/16
• B (in.) 2-1/2
• Coating/Material. Zinc Galvanized, G90

Installation

• Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
• Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
• MIU – add four additional 10dx1 1/2″ joist nails for a total uplift load of 975 lbs.

This item is Made to Order by Simpson Strong-Tie: Made to Order products are made for each order and are non-refundable. Please verify that all configurations / specifications are correct before checking out.

Note: Product dimensions may differ from picture. Please see above item description for specifications.

Download Specs Sheet: IUS-MIU_Face-Mount-Ijoist-glulam-scl-load-tables.pdf
