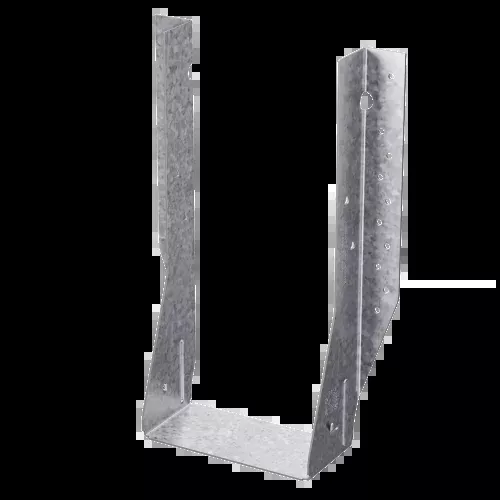

The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.
- Model No. MIU5.12/14
- Joist Size 5 in. x 14 in.
- Ga. 16
- W (in.) 5-1/8
- H (in.) 13-5/16
- B (in.) 2-1/2
- Coating/Material. Zinc Galvanized, G90
Installation
- Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
- Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
- MIU – add four additional 10dx1 1/2″ joist nails for a total uplift load of 975 lbs.
Note: Product dimensions may differ from picture. Please see above item description for specifications.
Download Specs Sheet: IUS-MIU_Face-Mount-Ijoist-glulam-scl-load-tables.pdf
