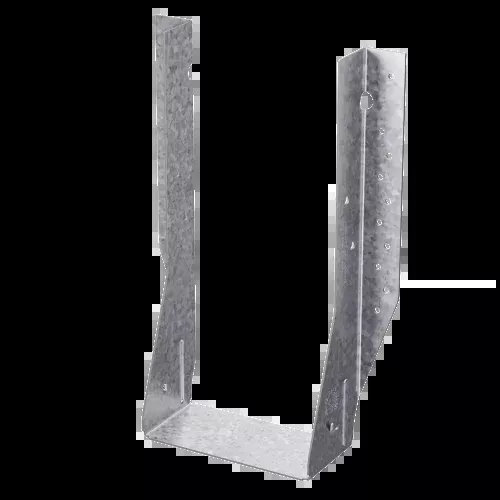

Simpson MIU5.12/7 Face-Mount I-Joist Hanger 5×7

The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.

• Model No. MIU5.12/7
• Joist Size 5 in. X 7 in.
• Ga. 16
• W (in.) 5-1/8
• H (in.) 7
• B (in.) 2-1/2
• Coating/Material. Zinc Galvanized, G90

Installation

• Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
• Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
• MIU – add four additional 10dx1 1/2″ joist nails for a total uplift load of 975 lbs.

Note: Product dimensions may differ from picture. Please see above item description for specifications.

Download Specs Sheet: IUS-MIU_Face-Mount-Ijoist-glulam-scl-load-tables.pdf
