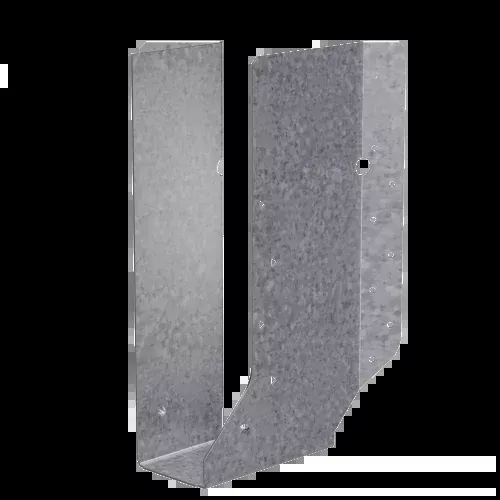

The SUR AND SUL are 45 degree-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.
- Model No. SUL2.56/11
- Skew. Left
- Ga. 16
- W (in.) 2-9/16
- H (in.) 11-3/16
- B (in.) 3-3/16
- Coating/Material. Zinc Galvanized, G90
- Contact us for Configurable Options and Special orders
Installation
Fasteners required. (16) 0.162 x 3-1/2 in. nails for the face and (2) 0.148 x 1-1/2 in. nails for the joist, OR (18) 9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112)
Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
Download Specs Sheet: SUR-SUL-HSUR-HSUL.pdf
