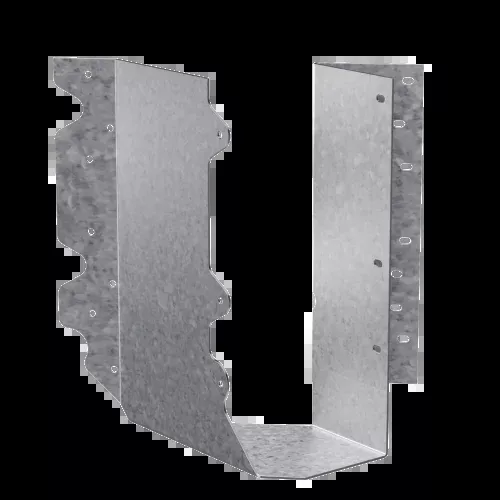

Simpson SUR214-2 Joist Hanger Skewed Right for Double 2×14, Galvanized

Special or made-to-order product — Lead times may vary based on manufacturing. Please note it is non-returnable. Contact us with any questions!

Questions? Contact us

Financing available

Satisfied or refunded

Secure payments

Mail itPrint itTechnical Specifications

Product Features

• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation

Product Description

The SUR AND SUL are 45 degree-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.

• Model No. SUR214-2
• Skew. Right
• Ga. 16
• W (in.) 3-1/8
• H (in.) 12-11/16
• B (in.) 2-7/16
• Coating/Material. Zinc Galvanized, G90
• Contact us for Configurable Options and Special orders

Installation

Fasteners required. (18) 0.162 x 3 1/2 for the face and (8) 0.162 x 2 1/2 for the joist

This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.

Download Specs Sheet: SUR-SUL-HSUR-HSUL.pdf
