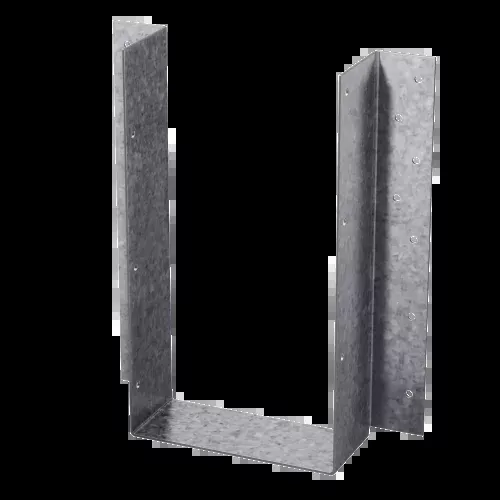

The U hanger is designed for joist-to-header installation in wood-framed construction. This face-mount hanger is engineered for strength and provides easy installation. The U hanger is precision-formed and manufactured to the highest quality standards.
- Model No. U2.1/4
- Ga. 16
- W (in.) 2-1/8
- H (in.) 3-1/2
- B (in.) 2
- Coating/Material. Zinc Galvanized, G90
Options
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin U/HU Hangers for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers – Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers – Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers – Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers – I-Joists, Glulam and SCL Tables
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: U-HU-HUC_Face-Mount_Joist_Hangers.pdf
