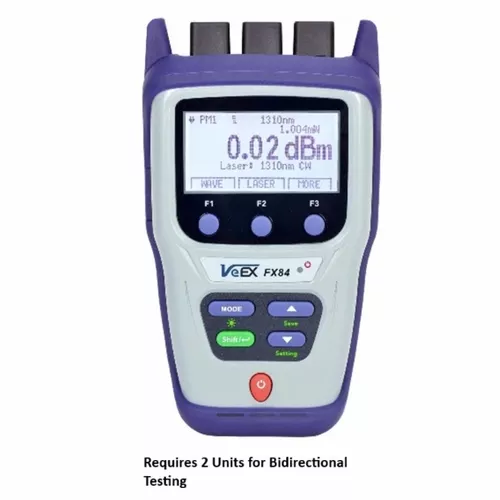

VEEX FX84 QUAD MM/SM OLTS 850/1300/1310/1550, BLUETOOTH, SCAPC,

Product Description

---

VEEX FX84 QUAD MM/SM OLTS 850/1300/1310/1550, BLUETOOTH, SCAPC,VEEX FX84 QUAD MM/SM OLTS 850/1300/1310/1550, BLUETOOTH, SCAPC,VEEX P/N FX84 QUAD MM/SM OLTS 850/1300/1310/1550, BLUETOOTH, SCAPC,REQUIRES 2 UNITS FOR BIDIRECTIONAL TESTINGFX84Optical Loss Test Set (OLTS)The FX84 OLTS combines power meter and light source functions into a single test unit. Individual test ports provide uni-directional loss measurements allowing two technicians on opposite ends of a fiber link to test simultaneously. The auto-loop feature toggles the light source wavelengths, while the remote or local OPM test partner detects the incoming wavelength/s automatically using the WaveID feature.NEW Now available: patent pending field-replaceable Connector Protector system extends the instrument’s lifespan, reduces downtime and improves productivityHigh contrast LCD – visible outdoors and backlight for indoor or low light conditionsHandheld, lightweight rugged designProtective rubber boot with tilt bail standSplash and dust resistant designNon-volatile storage for saved test resultsUp to 1920 single wavelength recordsDate/Time Stamp of test resultsProgrammable thresholds with Pass/FailUSB (wired) or optional Bluetooth (wireless) interface for test result transferRechargeable Li Polymer battery packMicro-USB, 5 Volt DC charger
