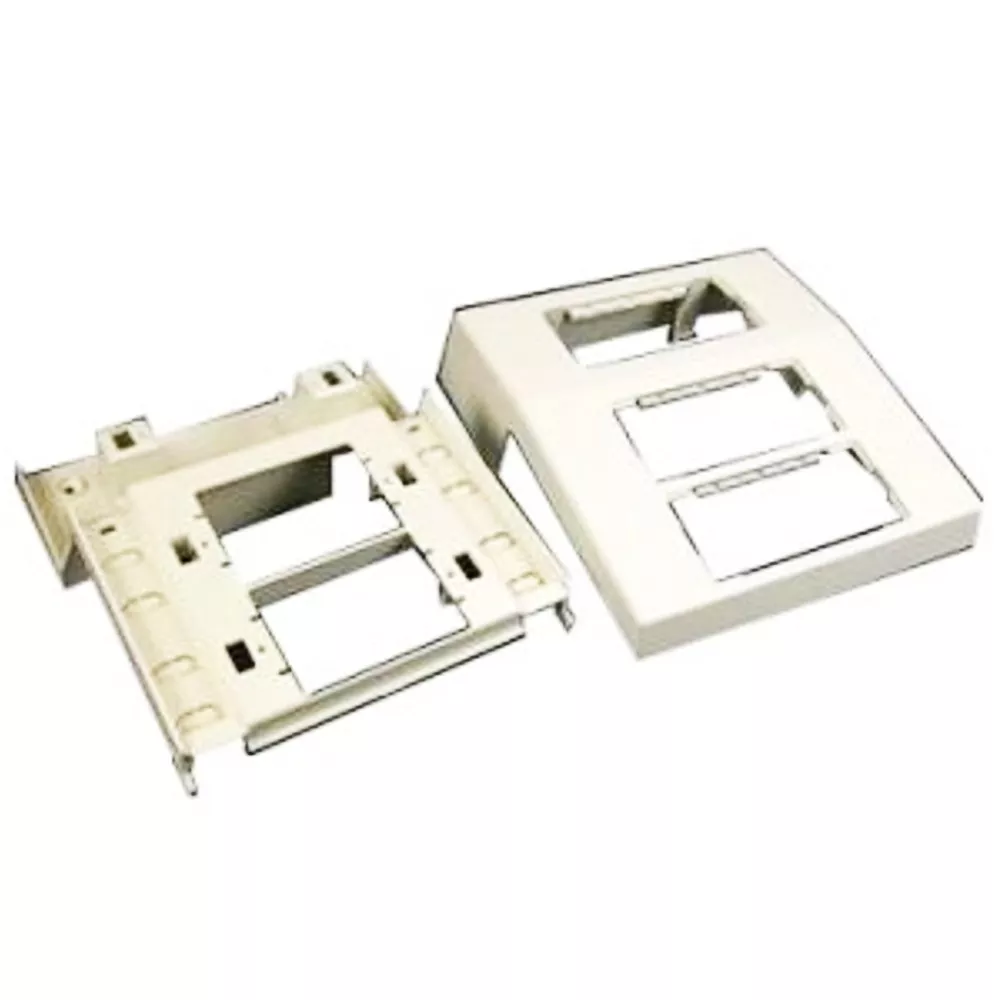

Three device 5400 series mounting bracket. Multiple channel capacity. For mounting up to three power or communication devices at one location in-line and offset from 5400TB series raceway. For use with 5507 series faceplates, Ortronics® (No Suggestions) and series II modules, Pass and Seymour activate series inserts and Wiremold open system communication modules.
For mounting up to three power or communication devices at one location inline and offset with 5400 Series Raceway.
For use with 5507 Series Faceplates, Ortronics TracJack and Series II Modules, Pass and Seymour Activate Series Inserts, Wiremold Open System Communication Modules.
NOTE: CM-EPLA End Plates are required when using Wiremold communication modules.S2-EPL End Plates are required when using Orthonics Series II Inserts.To mount TracJack inserts, use 5507-4TJ or 5507-6TJ Faceplates.
Specifications
Brand Name
Wiremold
Sub Brand
Wiremold
Item Name
Braces and Bracket
Material
Plastic
Type
Bracket,Fitting
Series/Model
5400 Series
Standards
cULus Listed Raceway: File E90378 Guide RJTX. Complies with flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC
Application
Commercial, Office and Residential Applications
UPC
786776059106
